Vaulted Ceiling Velux Windows in Kingston

Completed vaulted ceiling with three Velux windows letting in blue sky, the plaster finished and the light fittings still to go up

Where: Kingston upon Thames
The job: Vaulted ceiling with roof windows
Fitted: 3 Velux roof windows
New vaulted ceiling, insulated and plastered
Roof: Pitched

A homeowner in Kingston upon Thames wanted more light and height in a living space. We took out the existing ceiling, formed a new vaulted ceiling that follows the roof, and fitted three Velux roof windows into the slope.

Removing the old ceiling

The work began with taking down the existing flat ceiling. That opened the room up to the roof structure and gave us room to form the new vaulted ceiling, with the roof slope now part of the room.

Fitting three Velux windows

With the structure prepared, we fitted three Velux windows, set into the roofline in a row so the daylight spreads along the room rather than gathering in one spot.

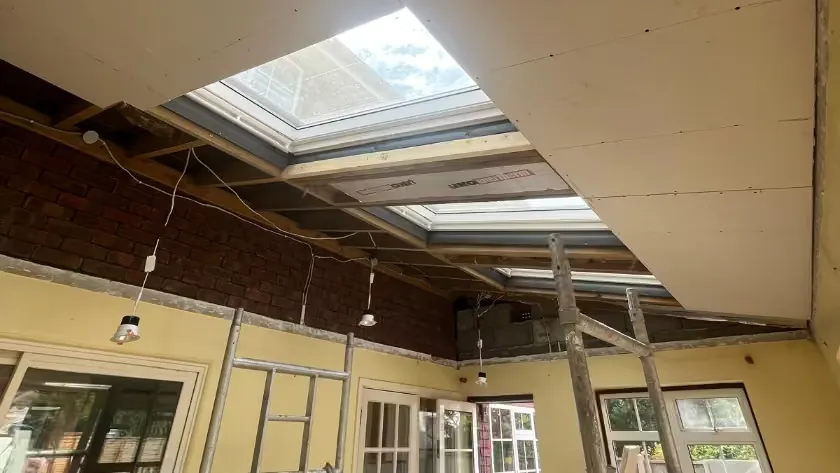

Three Velux windows fitted into the roof slope during the work, with the new ceiling being boarded around them and scaffold towers below — The three Velux windows in, with the new ceiling being boarded around them.

Insulating and boarding

The new ceiling was then insulated and boarded, following the slope of the roof and returning neatly into the reveals around each window.

Plastered and ready to decorate

To finish, the whole ceiling was plastered, leaving it ready for decoration and its new light fittings. The room now runs up into the roof, with three windows of sky overhead.

Thinking of vaulting a ceiling? See our Velux pitched roof windows or ask about flat glass skylights for a flat roof.

Questions about this job

Can you add Velux windows when you vault a ceiling?

Yes, and it is the best time to do it. With the old flat ceiling gone, the roof slope is open from inside, so the openings can be cut and trimmed between the rafters before the new ceiling is insulated and boarded around them.

Does a vaulted ceiling need building regulations approval?

Usually, yes. Taking out a flat ceiling can remove the ties that stop a roof spreading, so the new structure is normally designed by a structural engineer and checked by building control. The insulation in the new ceiling has to meet the regulations too.

How is a vaulted ceiling insulated?

The insulation follows the roof slope, fitted between and often under the rafters, then boarded and plastered. Done properly, the room stays warm in winter even though the ceiling now runs up to the roof.
